Optimum Door Tech Specs
Optimum Stainless Steel Door Construction
* Stainless Steel Door Slab 3″ thick (76mm)
* Aluminum frame “Thermo” with thermal break
* Reinforced construction
* Multi-point lock
* Electric strike (Doors with pull handles)
* Insulated core
* Acoustic Insulation 32dB
* Thermal Insulation U=0.85 W/m2.K (R=6.23)
Multi-point lock schematic
Sidelight Glass Options:
1. Frosted with clear lines.
2. Frosted.
3. Reflex. The glass is transparent from inside and reflective from outside.
4. Clear
Three panes of glass are used for increased energy efficiency. This feature blocks 86% of the sun’s ultraviolet rays.
Aluminum Frame “Thermo” keeps you warm in the winter and cool in the summer.
High thermal insulation means less wasted heat and energy. Aluminum frames “Thermo” are more energy efficient than stainless steel frames. The frame is constructed in such a way to avoid any thermal bridges. A piece of composite material with higher thermal resistance separates interior and exterior parts of the frame, thus preventing heat transfer.
In additional to higher R values, aluminum frames are corrosion resistant, which makes them suitable for harsh environments such as coastal regions.

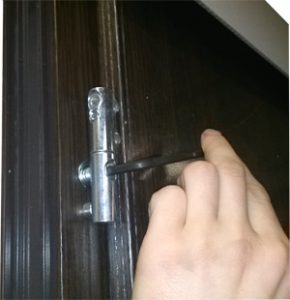

Adjustable Door Hinge

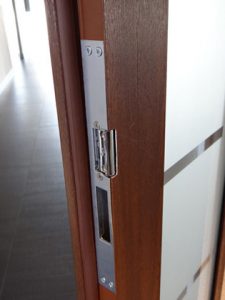

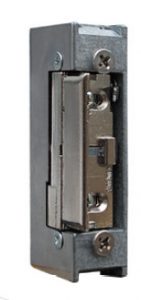

Door electric strike comes as standard feature for all orders. It is wired for optional fingerprint access control.
Cylinder locks with a set of 6 keys Peephole (optional) Non-Hold Open Surface closer

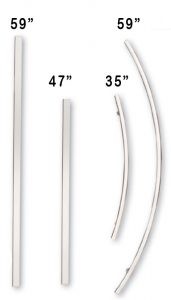

Entry Door Pull Handles
1. 59″ straight
2. 47″ straight
3. 59″ Curve
4. 35″ Curve
Pocket door handles come in 8″, 18″ and 71″ long.
