FR-MA300 IP Based Outdoor Fingerprint Access Control
MA 300 INSTALLATION MANUAL
MA300 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The MA300 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS232/485 are available that the device can be used in different network. TCP/IP communication makes sure the data transition between the device and the PC can be easily done within several seconds. MA300 can be used in tough environment because of the IP65 protection index and the wide range of operating temperature.
Features:
- Fingerprint reader with durable and highly accurate ZK optical sensor
- 1 touch a-second user recognition
- Stores 1,500 templates, 10,000 cards and 100,000 transactions
- Reads Fingerprint and/or Card
- Optional integrated smart card reader and external USB keypad
- Built-in Serial and Ethernet ports
- Tamper-proofs switch and alarm outputs
- Request-to-exit and alarm contacts
- Real-time 1-touch data export 3rd party hosted & non-hosted applications
- Audio-Visual indications for acceptance and rejection of valid/invalid fingers
- IP65 protection index
- Wide range of operating temperature
Specification:
| Fingerprint Capacity | 1500 templates |
| ID card Capacity | 10,000 |
| Transaction Capacity | 100,000 |
| Hardware Platform | ZEM710 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger v10.0 |
| Communication | RS232/485, TCP/IP, USB-host |

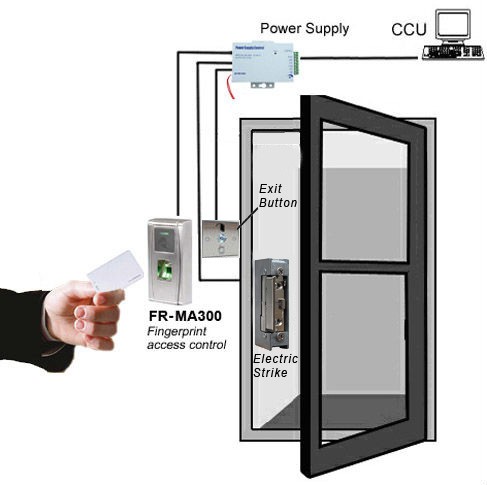

| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm |
| Wiegand Signal | Input & Output |
| Stardard Access Control Function | Time Zone, Group, Multi-identification, Duress mode, Anti-passback |
| Optional Functions | Mifare, external USB keypad |
| Display | N/A |
| Power Supply | 12V DC |
| Operating Temperature | -10 ℃- 60 ℃ |
| Operating Humidity | 10%-90% |
| Index of Protection | IP65 |
| Dimension(W*H*D)mm | 75*150*43 |
| Gross Weight | 1.15kg |
