Exterior Door Specifications
Stainless Steel Door Construction
Premium Class Door Design
* Stainless Steel Door Slab 2 1/8″ thick (54mm)
* Aluminum frame “Thermo” with thermal break
* Reinforced construction
* Multi-point lock

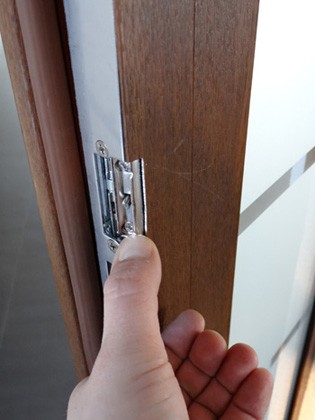

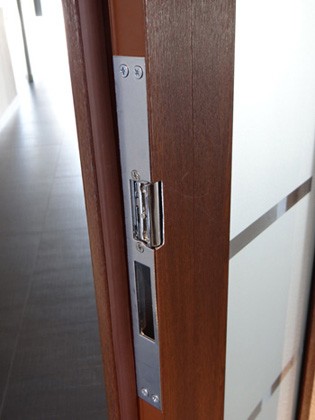

* Electric strike (Doors with pull handles)
* Insulated core
* Acoustic Insulation 32dB
* Thermal Insulation U=0.98 W/m2.K (R=5.79)
Termo Prestige Lux Door Design
* Aluminum Door Slab 3 3/8″ thick (86mm)
* Door Slab with two weatherstrips
* Aluminum frame “Thermo” with thermal break. Additionally insulated with foam.
* Multi-point lock
* Electric strike (Doors with pull handles)
* Acoustic Insulation 32dB
* Thermal Insulation U=0.79 W/m2.K (R=7.2)
* Warm PVC/ALU threshold with a thermal break
* Windstopper (eliminates possible blow-by in the threshold part)
* Adjustable Door Sweep
* 3D Adjustable Hinges
ALU Hybrid Door Design
* Door slab is 3 3/8″ thick (86mm)
* Aluminum door slab filled with foam polyurethane and composite frame
* Door slab design is flush with the door frame on both sides
* Warm ALU HYBRID door frame with an XPS insert improving thermal insulation
* Multi-point lock. 8 locking points
* * 3D Adjustable Concealed hinges
* Electric strike (Doors with pull handles)
* Acoustic Insulation 30dB
* Thermal Insulation U=0.54 W/m2.K (R=10.5)
* Warm PVC/ALU threshold with a thermal break
Standard Colors
Natural decor finishes.

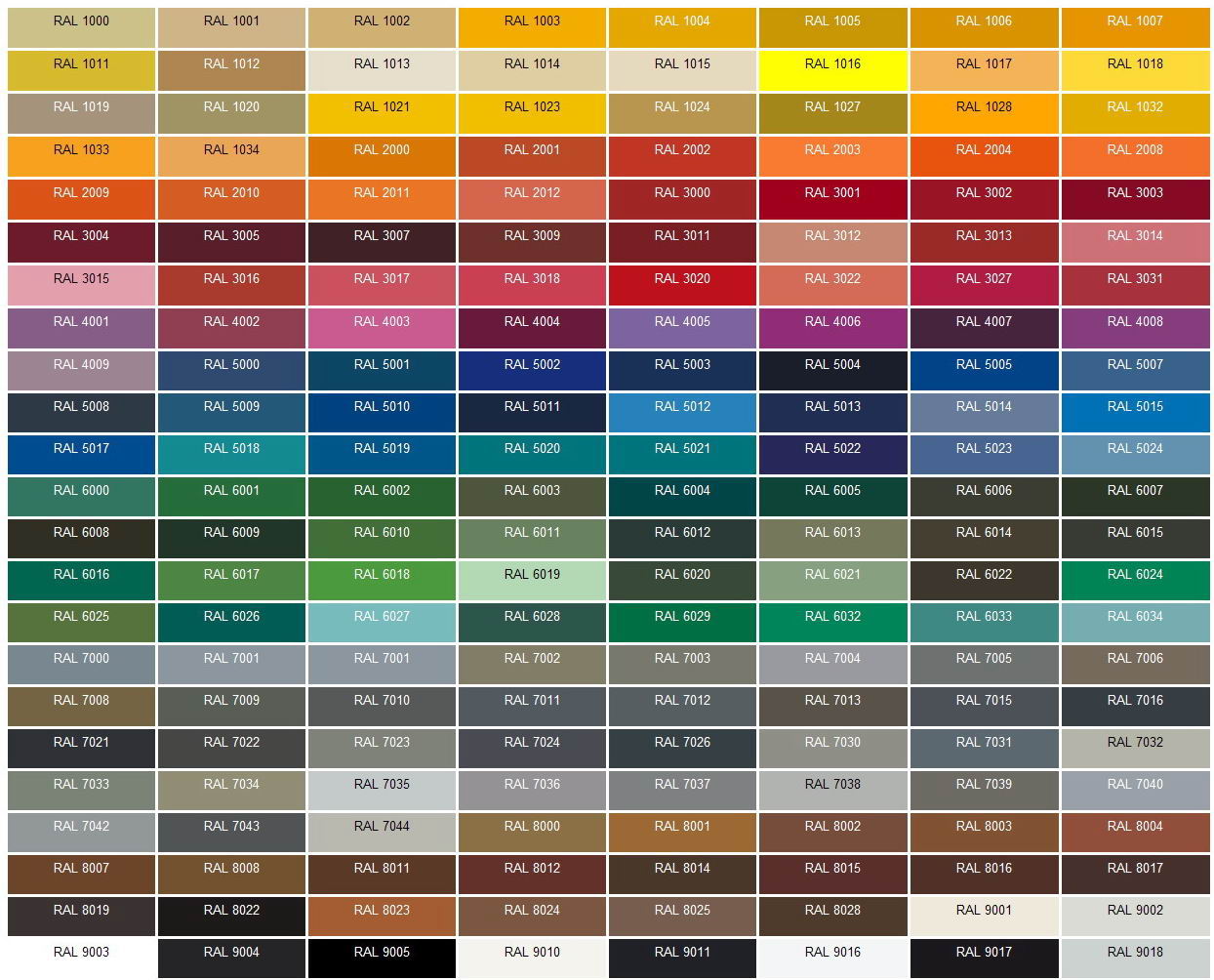

RAL colors. Painted finishes.
Exterior door finish samples can be ordered from the links below.
Glass Options:
1. Frosted with clear lines.
2. Frosted.
3. Reflex. The glass is transparent from inside and reflective from outside.
Three panes of glass are used for increased energy efficiency. This feature blocks 86% of the sun’s ultraviolet rays.
Aluminum Frame “Thermo” keeps you warm in the winter and cool in the summer.
High thermal insulation means less wasted heat and energy. Aluminum frames “Thermo” are more energy efficient than stainless steel frames. The frame is constructed in such a way to avoid any thermal bridges. A piece of composite material with higher thermal resistance separates interior and exterior parts of the frame, thus preventing heat transfer.
In additional to higher R values, aluminum frames are corrosion resistant, which makes them suitable for harsh enviroments such as coastal regions.
Heat Transfer Schematics
1 – Insulated door slab
2 – Insulated frame
3- Thermal bridges (arrows)
Why doors freeze?
A regular metal door, wether it’s insulated or not, will freeze. It doesn’t matter how much insulation implemented and how thick is a metal sheet. A metal door is constructed with a closed metal profile (a hollow metal profile with closed cross section). Stainless steel has a high thermal conductivity. Freezing happens fast.
To avoid freezing, VilleDoors implements metal profiles with “thermorupture”. A piece of material with low thermal conductivity divides interior and exterior parts of the door.
Sample of a bad insulated door. Condensate, or as a result, frost is formed on the warmer, interior side. It’s a natural physical process, when there is a big difference in temperature inside and outside, supported by humidity and cold metal surface in a warm invironment.
Same conception applies for hot regions, such as Miami, Florida. Well insulated door helps to save energy for an air conditioned room.
Single Door Dimensions
Door Frame and Brick Opening Dimensions for Doors with Aluminum Frames “Thermo”
| Door Slab Width Sp [inch] | Door Slab Height Hs [inch] | Door Frame Width Sc [inch] | Door Frame Height Hc [inch] | Minimum Wall Opening Width So [inch]Recommended mounting space is at least 3/8″ on each side | Minimum Wall Opening Height Ho [inch]Recommended mounting space is at least 3/8″ on each side |
| 32 1/2 | 80 | 36 1/2 | 82 | 37 | 82 1/2 |
| 36 1/2 | 80 | 40 1/4 | 82 | 41 | 82 1/2 |
| 40 1/2 | 80 | 44 1/4 | 82 | 45 | 82 1/2 |

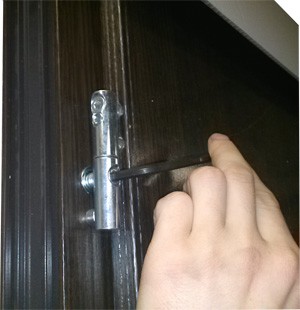

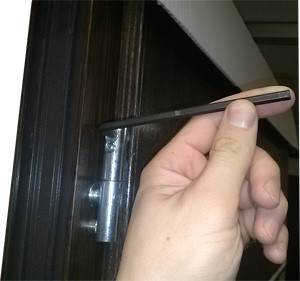

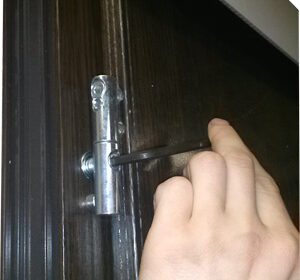

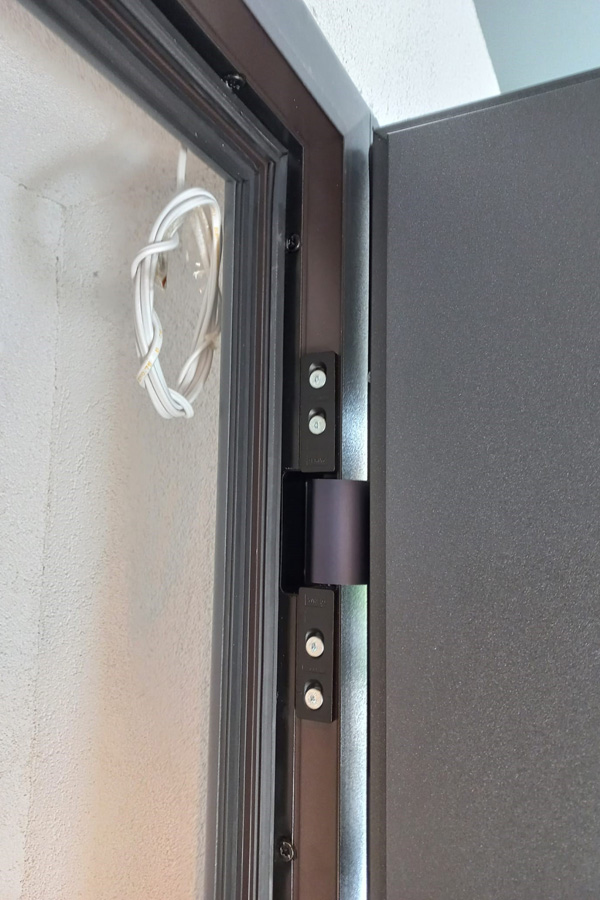

Adjustable Door Hinge

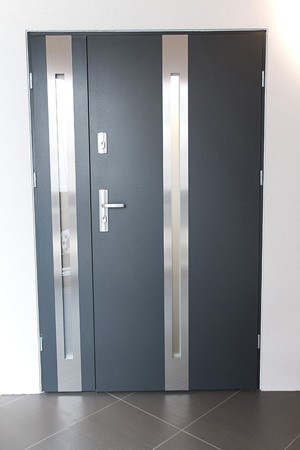

Stainless Steel Double Doors

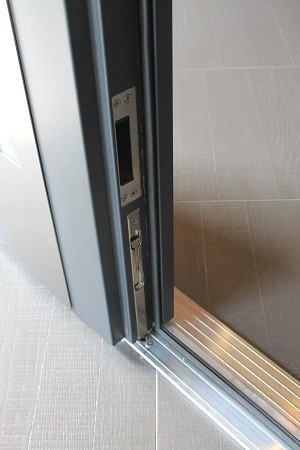

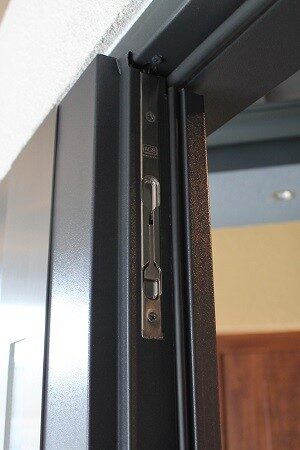

Double doors are the doors with both slabs active, meaning both doors can open when needed. One door remains closed by means of flush bolts. The doors can be produced in different sizes. For example 36″+36″, 32″+32″, 36″+20″, 36″+16″
| Minimum Wall Opening Width, [inch] | Minimum Wall Opening Height, [inch] | Main Door Width, [inch] | Sidelite width, [inch] | Door Frame Width, [inch] |
| 49 | 82.5 | 32 1/2 | 12 | 48 1/2 |
| 53 | 82.5 | 36 1/232 1/2 | 1216 | 52 1/2 |
| 57 | 82.5 | 36 1/2 | 16 | 56 1/2 |
Doors with Glass Sidelites and Transom
Sidelites can be produced in two versions – fixed or active. An active one usually has the same design as the main door (see the image below). A fixed sidelite can be made with glass from bottom to top. Doors with fixed sidelites come only with aluminum frame.
Sidelites and Transom Options
Glass Sidelites are available in the following widths: 12″, 16″, 20″.
Transoms are available in the following heights: 12″, 16″, 20″.
Door Hardware and Additional Options

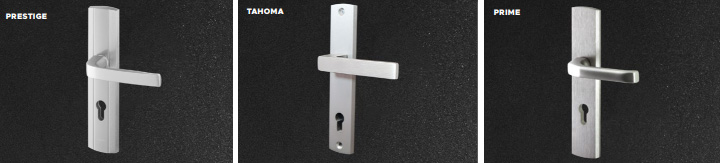

Door lever design

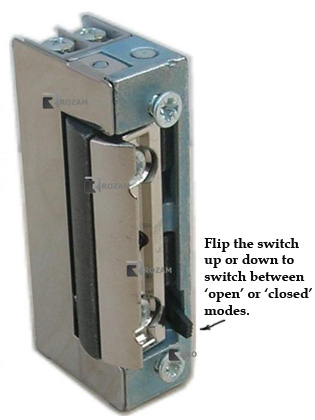

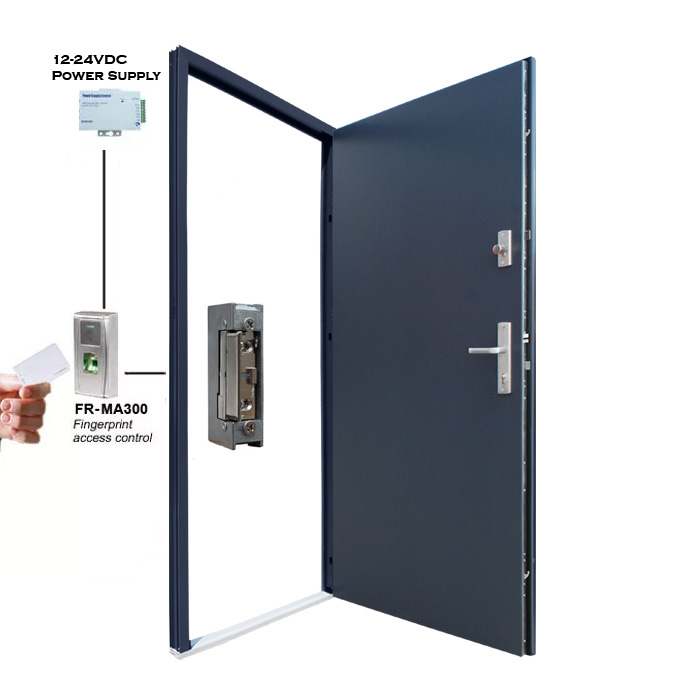

Doors with pull handles automatically come equipped with electric strikes. A keyless entry system such as intercom, keypad or fingerprint reader can be installed to control the door opening.
Cylinder locks with a set of 6 keys
Peephole (optional)

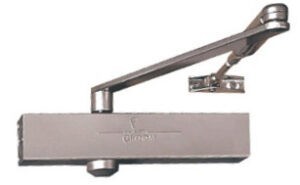

Non-Hold Open Surface closer

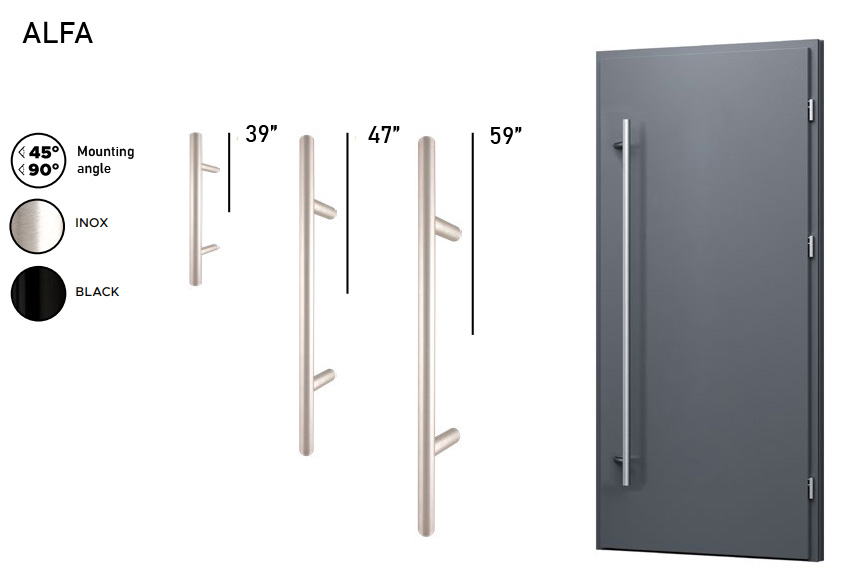

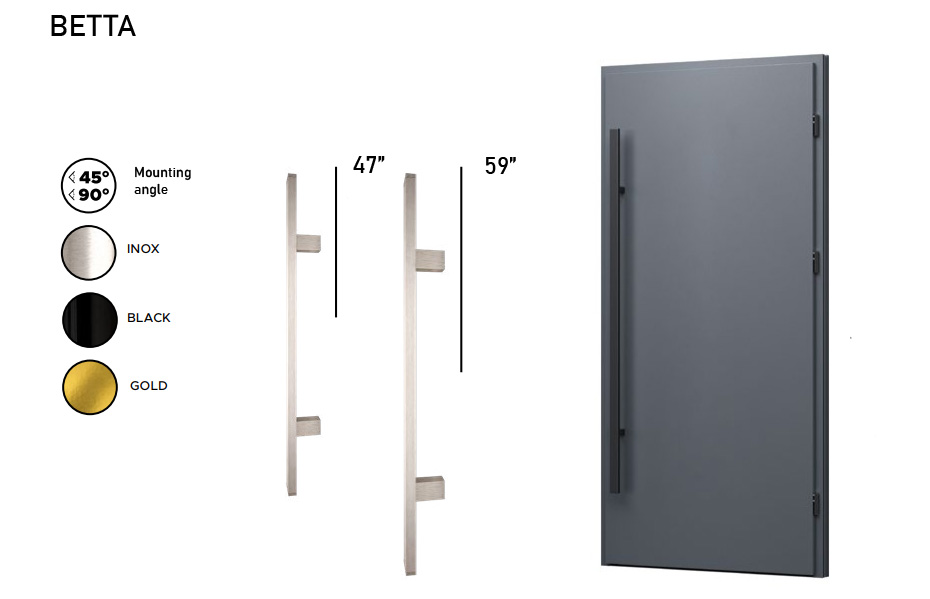

Standard option. Long pull handle from one side and regular door lever from the other side.
Long pull handle from both sides. $120
Bi-color option $150

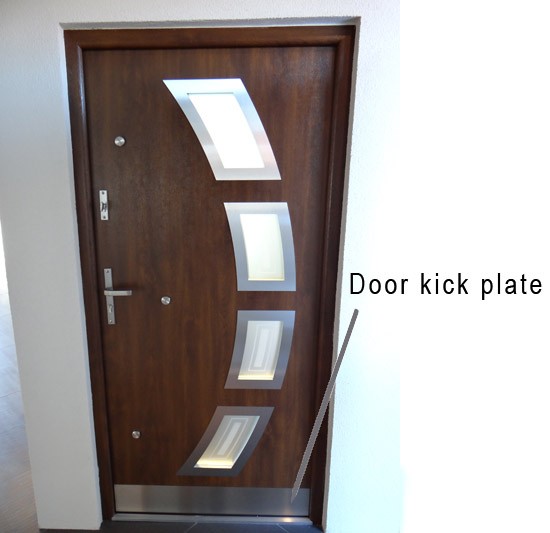

Door kick plate is optional at additional cost of $35.

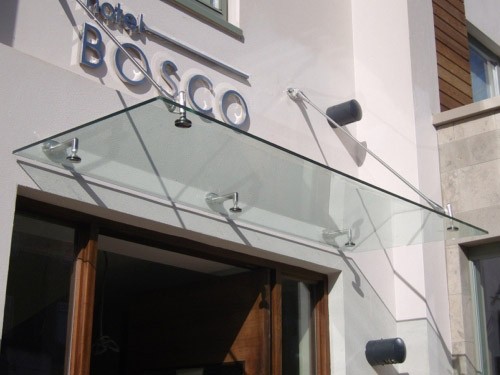

Glass Canopy
Your beautifull door can be complemented with elegant glass canopy, to keep your porch dry and safe. You can order hardware only or full set, including safety glass.
